    Detail

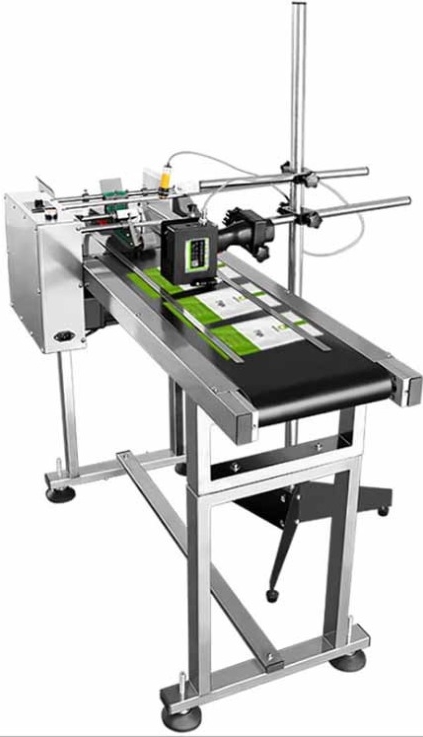

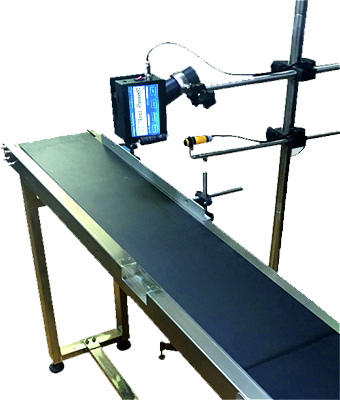

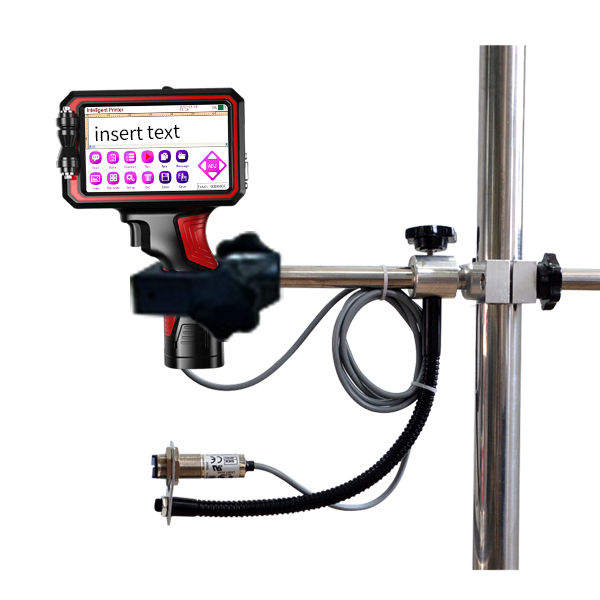

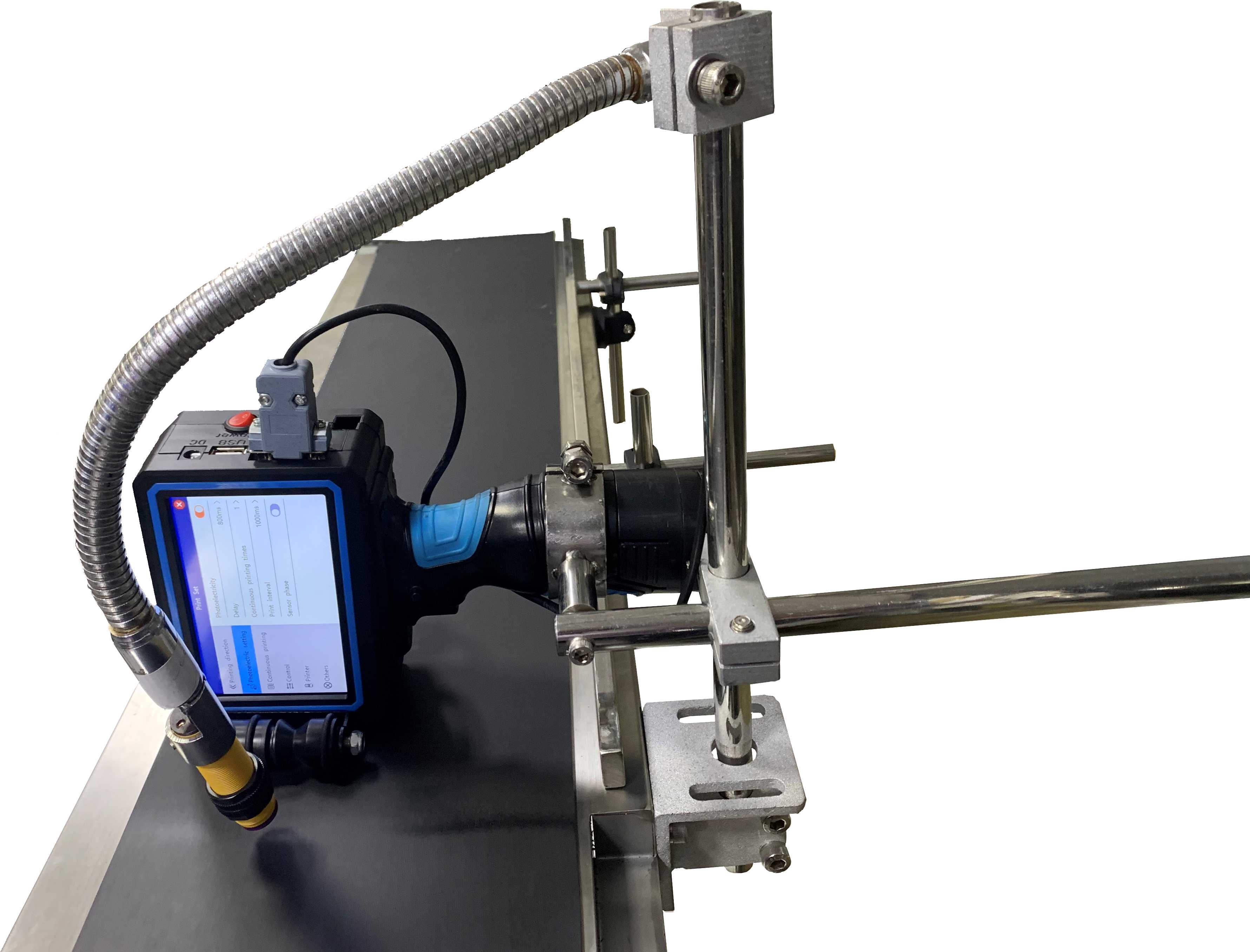

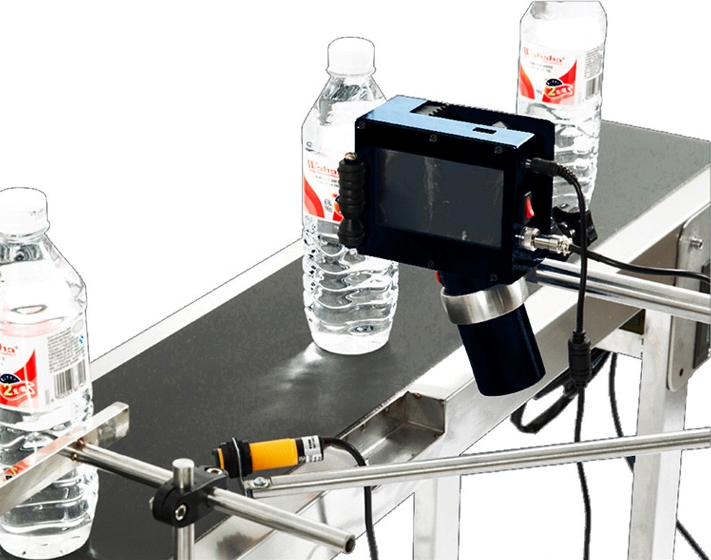

    AIMS brand (made in India) Best Quality World's Lightest Industrial Online (including bracket & sensor for online mounting) Non-Contact Ink Jet Printer Model IJP – M3S-O (12.7 mm), which is a 4-in-1 Compact design, Zero Maintenance, 300-600 dpi high resolution, SIX line (character height 1.2 to 12.7 mm) Printer & can be used on Porous / Non-Porous products to print B.No., Exp.Date, Time, Serial No. (AGMARK), Logos, Scannable variable Bar Codes, etc. on labels, cartons, pouches, drums, containers, etc. It can be mounted on conveyor or Packing Machine with the stand for On-Line Printing. It is fully programmable using the 5-inch full color Touch Screen LCD or with input from USB Pen Drive. It can also be used by Hand for Manual Printing.

    The system is inclusive of below mentioned accessories worth Rs. 25,000/- free of cost:

    a.  Hard Aluminum Carry Case with molded slots for printer & accessories.

    b.  1 No. 2200 mAh Rechargeable Batteries.

    c.  1 No. disposable Pre-mix Black ink cartridge, Cartridge cleaning Wipe.

    d.  Bracket with External Sensor, Operation & Maintenance Manual, Instruction Video.

    This printer is fully Electronic without CORE system &does not have any air pump, viscosity control unit, filters, etc. & so there is no maintenance required (No AMC). It does not require separate make up or wash solution as everything is included in the disposable ink cartridges making it very user friendly for the Operator. The running / Printing cost is only about 6 Paise per impression (25 char).

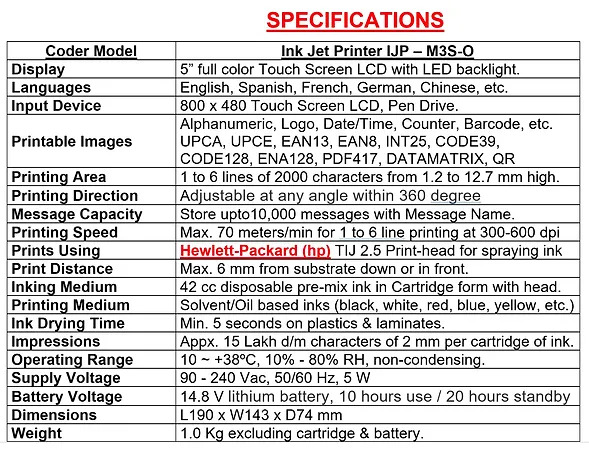

    SPECIFICATIONS

    Coder Model

    Ink Jet Printer IJP – M3S-O

    Display

    5” full color Touch Screen LCD with LED backlight.

    Languages

    English, Spanish, French, German, Chinese, etc.

    Input Device

    800 x 480 Touch Screen LCD, Pen Drive.

    Printable Images

    Alphanumeric, Logo, Date/Time, Counter, Barcode, etc. UPCA, UPCE, EAN13, EAN8, INT25, CODE39, CODE128, ENA128, PDF417, DATAMATRIX, QR

    Printing Area

    1 to 6 lines of 2000 characters from 1.2 to 12.7 mm high.

    Printing Direction

    Adjustable at any angle within 360 degree

    Message Capacity

    Store upto10,000 messages with Message Name.

    Printing Speed

    Max. 70 meters/min for 1 to 6 line printing at 300-600 dpi

    Prints Using

    Hewlett-Packard (hp) TIJ 2.5 Print-head for spraying ink

    Print Distance

    Max. 6 mm from substrate down or in front.

    Inking Medium

    42 cc disposable pre-mix ink in Cartridge form with head.

    Printing Medium

    Solvent/Oil based inks (black, white, red, blue, yellow, etc.)

    Ink Drying Time

    Min. 5 seconds on plastics & laminates.

    Impressions

    Appx. 20 Lakh dot matrix char. of 2 mm per cartridge of ink

    Operating Range

    10 ~ +38ºC, 10% - 80% RH, non-condensing.

    Supply Voltage

    90 - 240 Vac, 50/60 Hz, 5 W

    Battery Voltage

    14.8 V lithium battery, 10 hours use / 20 hours standby

    Dimensions

    L190 x W143 x D74 mm

    Weight

    1.0 Kg excluding cartridge & battery.
